RealDash Interface
DashBox
DashBox connects your vehicle signals to RealDash digital dashboards over Bluetooth. Replace your traditional instrument cluster with a flexible digital display and keep integration practical — analog, digital, CAN and ECU RPM inputs all covered.
8 analog inputs — 2× 0–18 V, 2× 0–5 V, and 4× sensor/switch inputs with internal 5 V pull-up. Includes +5 V sensor supply voltage and ground wiring through the connector.
7 digital inputs for signal lights and switches, 0–18 V range.
ECU RPM input with coil negative input option — contact us for details when ordering if your ECU setup requires it.
CAN bus support — simplifies integration with aftermarket ECUs including Megasquirt 3. All input data is also written to CAN bus, making it available to other connected devices.
Bluetooth connection to Android tablet running RealDash.

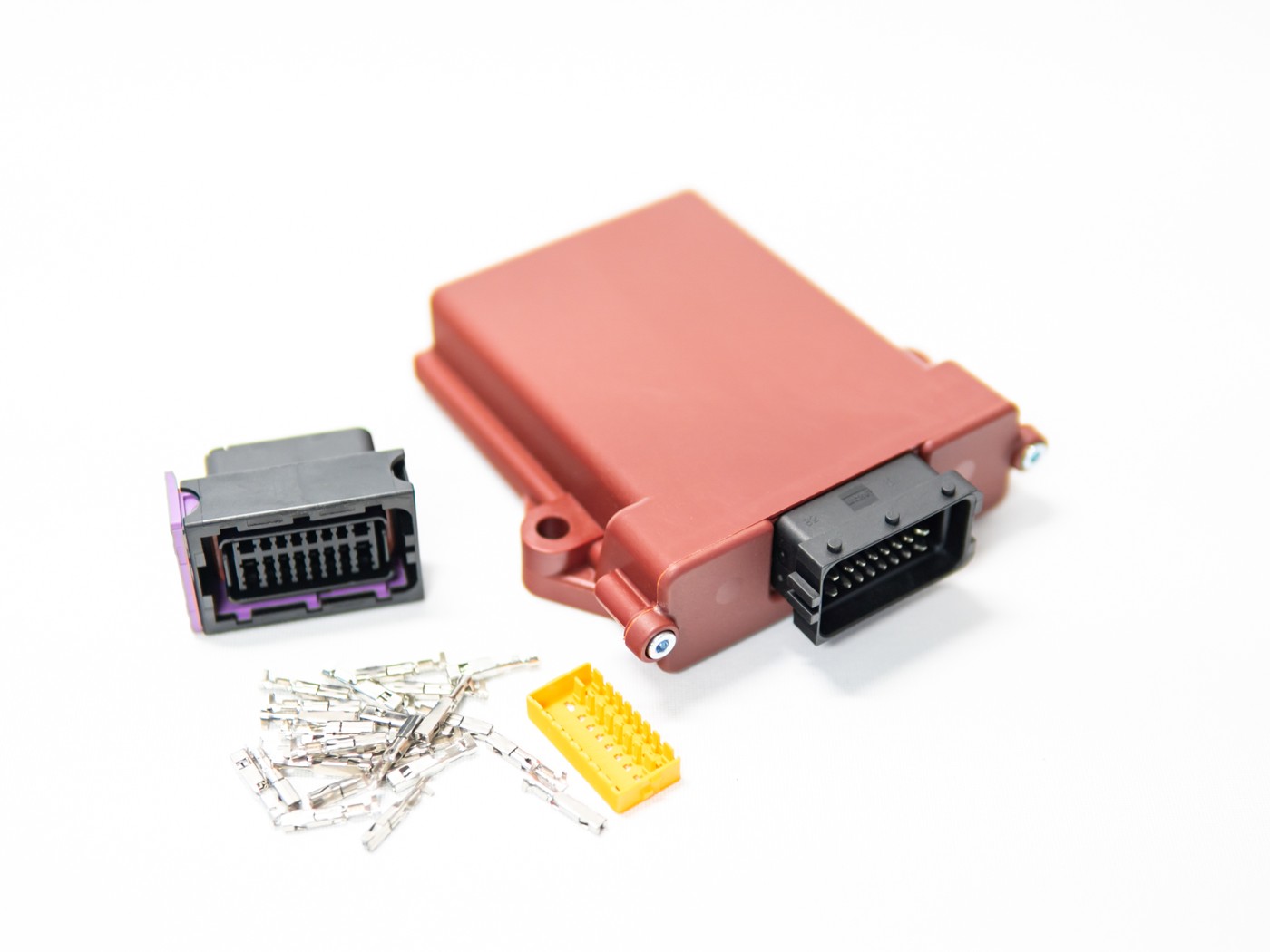

Connectors and pins included for easier installation.
158.56 € (VAT 0%, outside EU) / 199.00 € (incl. VAT 25.5%, EU)
Documentation
